Rough terrain diesel articulating booms are the most versatile type of access platform. Built to cope with tough construction sites they are more compact than telescopic booms with the ability to reach up and over obstacles. Their powerful diesel engine and four wheel drive can cope with rigorous terrain, these machines have job site proven performance and reliability.
Boom Lift Hire: Articulated Platforms
Standard operating features include: Four wheel drive, (45% grade ability) Foam filled tyres, (eliminate puncture costs and reduce down time) Oscillating axle, (provides increased traction when travelling) 360 degrees continuous rotation, (on models 20m and above) Zero tail swing Drive at full height Load sensing system
12m Working Height Platform Model: Z34/22 Width: 1.85m Working Height: 12.62m Machine Weight: 4740kg Lift Capacity: 227kg The Genie Z34/22 is the smallest, most compact, rough terrain four wheel drive diesel boom in our hire fleet. At just 1.8m wide and zero tail swing its ideal in tight spaces. This machine is equally at home on DIY applications or construction sites.
Download  PDF Spec Sheet
16m Working Height Platform Model: Z45/25J Width: 2.29mm Working Height: 16m Machine Weight: 6486kg Lift Capacity: 227kg Models available from both Genie and JLG, the 16m diesel articulating boom is the most commonly used machine in our hire fleet. Excellent manoeuvrability, smooth controls and great off road ability all combine to make this a true work horse.
Download  PDF Spec Sheet
20m Working Height Platform Model: 600SAJ Width: 2.44m Working Height: 20.29m Machine Weight: 10650kg Lift Capacity: 230kg The 600AJ offers the highest up and over reach in its class. It’s extremely versatile with precise proportional control. A powerful four wheel drive system with an oscillating axle provides increased traction when travelling.
Download  PDF Spec Sheet
26m Working Height Platform Model: 800AJ Width: 2.44m Working Height: 26.38m Machine Weight: 15030kg Lift Capacity: 230kg The 800AJ has a unique ‘Quick Stick’ design allowing the operator to go from ground to 26m in 50 seconds. Idea for construction and industrial applications. As with all JLG machines speed and reliability improve productivity.
Download  PDF Spec Sheet
16m Working Height Platform Model: Z45/25JXC Width: 2.29mm Working Height: 16m Machine Weight: 6486kg Lift Capacity: 227kg The new Extra Capacity Z45XC from Genie gives the same robust and versatile machine as the Z45RT but now with extra lifting capacity. With the telescope section in, it has a load capacity of 454kg, when the telescope section is extended the capacity is reduced to 300kg. This model can also be supplied with an on-board 110v generator and operator anti-entrapment.
Download  PDF Spec Sheet © Microtech Wakefield Ltd 01924 332373
20m Working Height Platform Model: 200ATJ Width: 2.4m Working Height: 20m Machine Weight: 10,050kg Lift Capacity: 230kg The Manitou 200ATJ has a Kubota engine that significantly reduces polluting emissions, noise and fuel consumption. The heavy duty axles have four wheel drive and four wheel steer. This model can also be supplied with an on-board 110v generator and operator anti-entrapment.
Download  PDF Spec Sheet

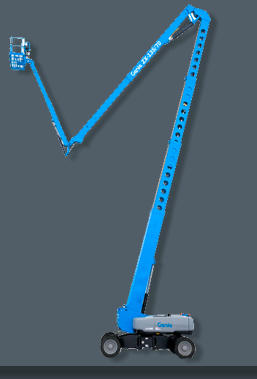

43m Working Height Platform Model: ZX135/70 Width Axle In 2.49m Width Axle Out 5.03m Working Height: 43m Machine Weight: 21092kg Lift Capacity: 272kg The Genie ZX135/70 offers increased productivity in construction and industrial applications. The articulating configuration and telescoping fly jib give it an impressive range of motion. The fast mast system allows the platform to be lowered to the ground without having to lower the secondary boom. It has extending axles that expand with four wheel drive and four wheel steer or crab steer. Operator anti- entrapment is also fitted to this machine.
Download  PDF Spec Sheet
0113 2822433
Tel: 0113 2822433
Boom Articulated Platforms
Rough terrain diesel articulating booms are the most versatile type of access platform. Built to cope with tough construction sites they are more compact than telescopic booms with the ability to reach up and over obstacles. Their powerful diesel engine and four wheel drive can cope with rigorous terrain, these machines have job site proven performance and reliability. Standard Operating Features  Include…. Solid or foam filled tyres 4 Wheel drive (up to 45% grade ability) Load sensing system Drive at full height Oscillating axle (Provides increased traction when travelling) 360 degrees continuous rotation Zero tail swing
Model: Z45/25J Width: 2.29m Working Height: 16m MachineWeight: 6486kg Lift Capacity: 227kg
Models available from both Genie and JLG, the 16m diesel articulating boom is the most commonly used machine in our hire fleet. Excellent manoeuvrability, smooth controls and great off road ability all combine to make this a true work horse.
Model: Z34/22 Width: 1.85m Working Height: 12.62m MachineWeight: 4740kg Lift Capacity: 227kg
The Genie Z34/22 is the smallest, most compact, rough terrain four wheel drive diesel boom in our hire fleet. At just 1.8m wide and zero tail swing its ideal in tight spaces. This machine is equally at home on DIY applications or construction sites.
Model: 			600AJ Width: 			2.44m Working Height: 		20.29m 	 MachineWeight: 		10650kg Lift Capacity: 		230mkg 			 The 600aj offers the highest up and over reach in its class. It’s extremely versatile with precise proportional control. A powerful four wheel drive system with an oscillating axle provides increased traction when travelling. Model: 			800AJ Width: 			2.44m Working Height: 		26.38m 	 MachineWeight: 		15030kg Lift Capacity: 		230kg 			 The 800aj has a unique ‘Quick Stick’ design allowing the operator to go from ground to 26m in 50 seconds. Idea for construction and industrial applications. As with all JLG machines speed and reliability improve productivity. Articulated Platforms
Model: Z45/25JXC Width: 2.29m Working Height: 16m MachineWeight: 6486kg Lift Capacity: 227kg
The new Extra Capacity Z45XC from Genie gives the same robust and versatile machine as the Z45RT but now with extra lifting capacity. With the telescope section in, it has a load capacity of 454kg, when the telescope section is extended the capacity is reduced to 300kg. This model can also be supplied with an on-board 110v generator and operator anti-entrapment.
Model: 			200ATJ Width: 			2.4m Working Height: 		20m 	 MachineWeight: 		10,050kg Lift Capacity: 		230mkg 	 The Manitou 200ATJ has a Kubota engine that significantly reduces polluting emissions, noise and fuel consumption. The heavy duty axles have four wheel drive and four wheel steer. This model can also be supplied with an on-board 110v generator and operator anti-entrapment.
Model: ZX135/70 Width: Axle In 2.49M Width: Axle out 5.03 Working Height: 43.m MachineWeight: 21092kg Lift Capacity: 227kg
The Genie ZX135/70 offers increased productivity in construction and industrial applications. The articulating configuration and telescoping fly jib give it an impressive range of motion. The fast mast system allows the platform to be lowered to the ground without having to lower the secondary boom. It has extending axles that expand with four wheel drive and four wheel steer or crab steer. Operator anti-entrapment is also fitted to this machine.
